S 504 C2
New product
Brand : Cardin
Frequency : 433.92 MHz
Number of buttons : 2
Coding : Rolling code
This product is no longer in stock
Warning: Last items in stock!
Availability date:
Take advantage of discounts on this product:
- 15% discount for 2 or more remotes
- 20% discount for 5 or more remotes

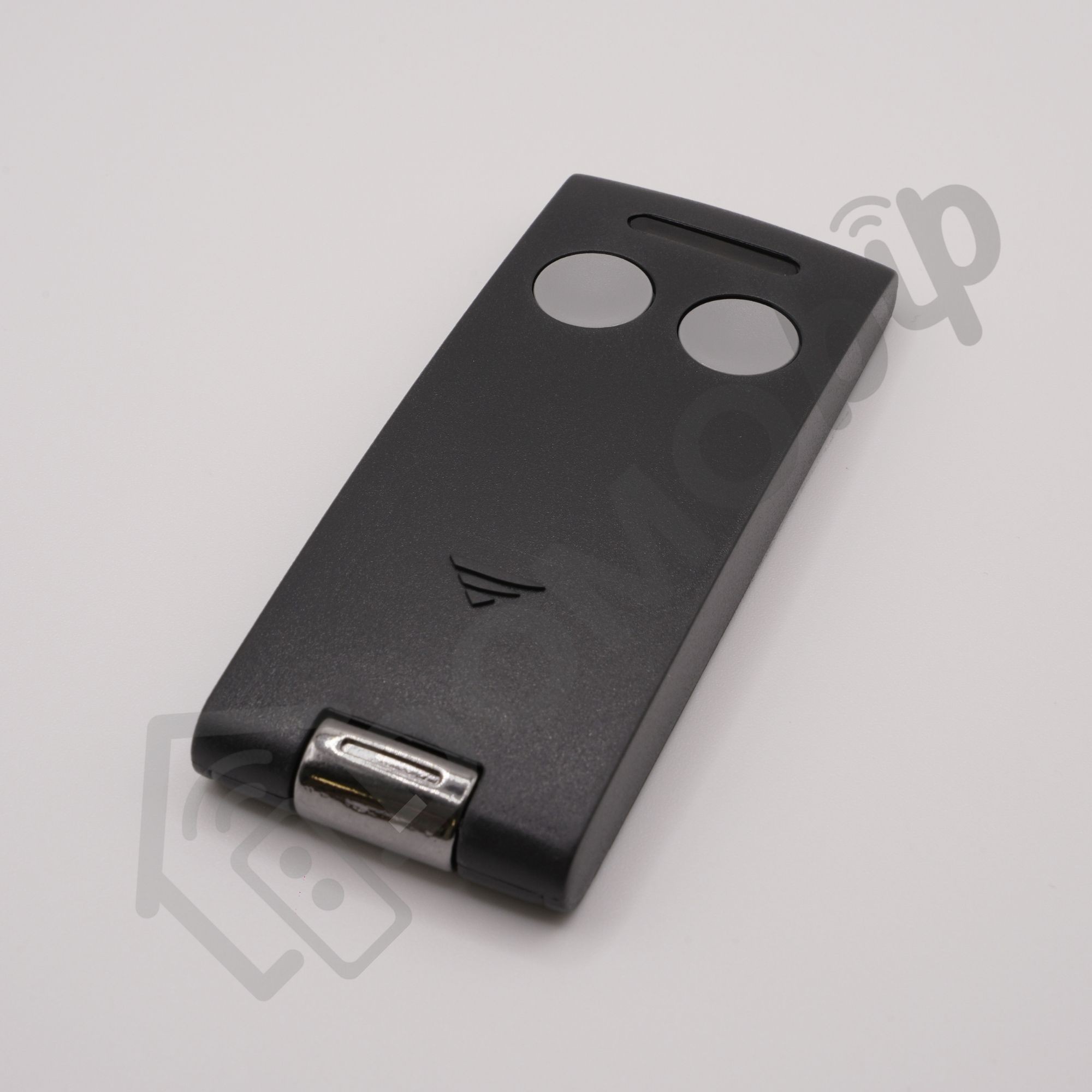

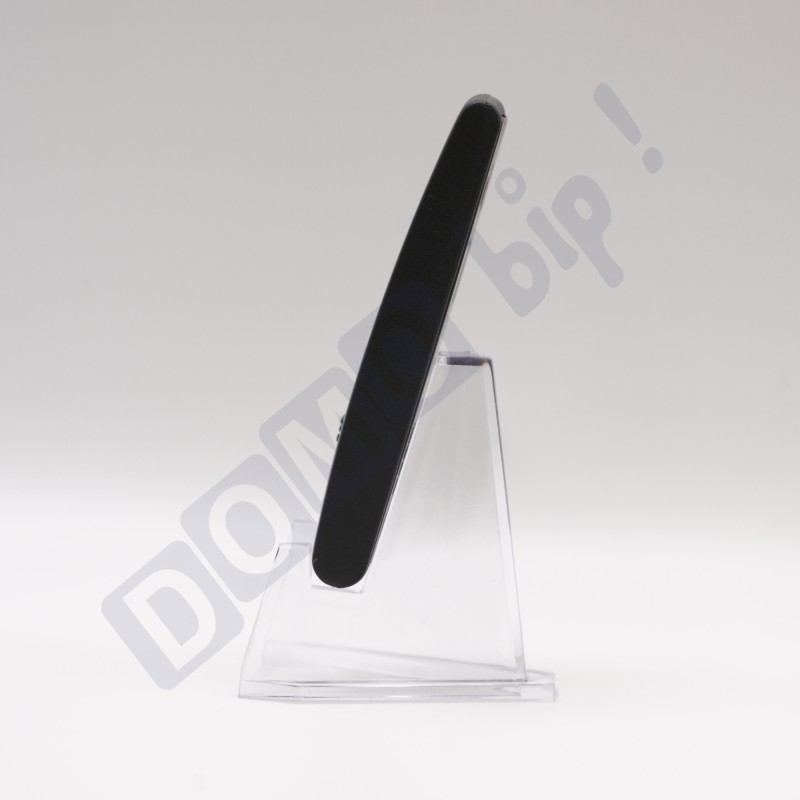

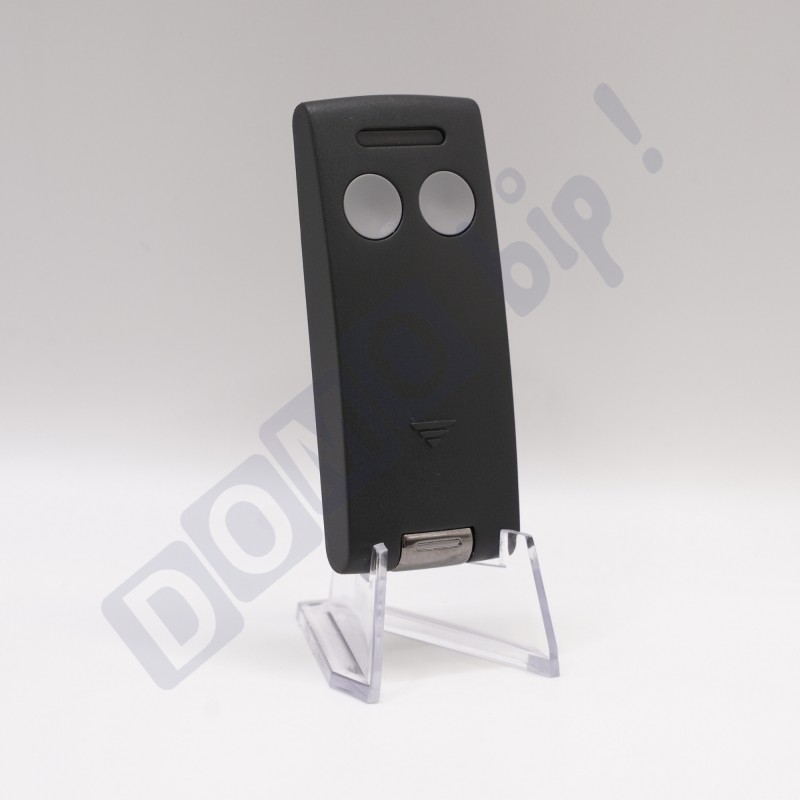

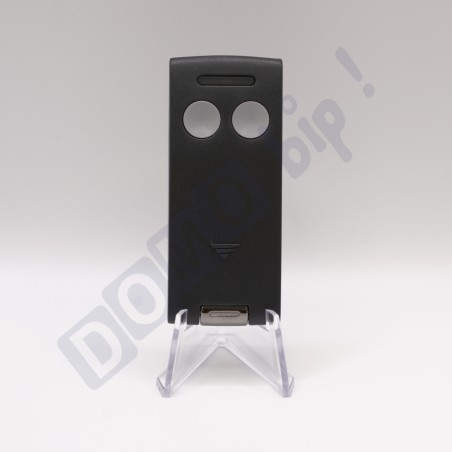

Dynamic rolling code gate transmitter TXQ504C2, 433.92 MHz, 2 channels.
This transmitter is not a universal remote control. It is only compatible with S504 receivers. Make sure this is the model you need to control your swing gate / sliding gate / door automation before ordering.
The Cardin S 504 C2 gate remote control is supplied without instructions. However, Domobip provides you with the programming guides below. The battery is included.
Guide to programming your remote control from an already programmed remote control:

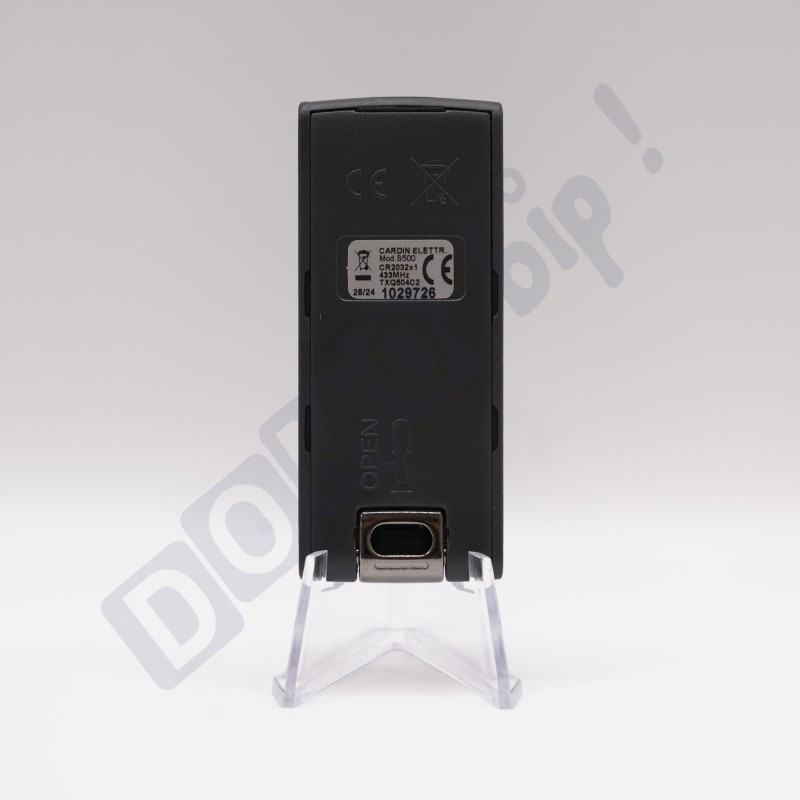

Step 1. On the back, remove the top part of your two remotes (the one to be programmed and the one already programmed, the chrome part where it says "OPEN" on the top) using a screwdriver. Place the transmitters side by side.
Step 2. Push a small needle into the "MR" button on one transmitter and then the other or simultaneously. The orange LED on both transmitters will flash slowly.
Step 3. On the already programmed beep, press a button that is already in use on your receiver. The LED on your new remote control will light up for 3 seconds to confirm the programming. Your new transmitter is now programmed!
Guide to programming your remote control from your receiver :
Step 1. Open your receiver case. On the receiver board, press and hold the programming button. The LED on your receiver will flash slowly.
Step 2. Press the button you wish to program on your new remote control. The LED on your receiver will light up quickly. Press this button again. The LED on your receiver lights up steadily and then goes out after a few moments.
Step 3. Repeat for each button you wish to program, then wait 10 seconds. Your new remote control is now programmed!
Any comments about the guide? Don't hesitate to contact us via the contact form!
Frequently asked questions :
I live in a condominium. Can I buy a Cardin S504 C2 remote control and program it myself?
It is very likely that your property manager has blocked the condominium's receiver. Contact him before placing your order.
