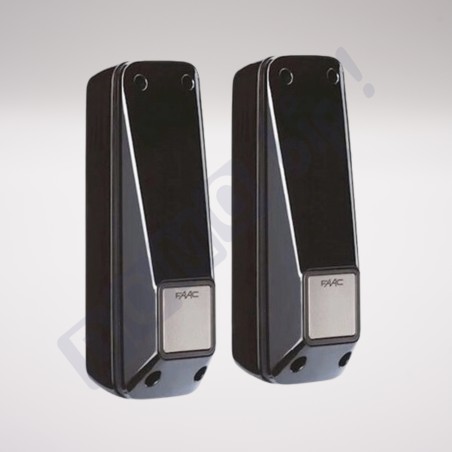

Pair of XP 20 D photocells - FAAC

⭐⭐⭐⭐⭐ 4,9 / 5

€43.16
Including €0.17 for ecotax
Tax included
Available
Add to Cart
Order

Warning: There are three models of FAAC photocells that look identical:
XP 20 D: Wired power supply, compatible with all brands of automation systems
XP 20B D: Bus2easy power supply for FAAC motors equipped with dedicated ports
XP 20W D: Identical to the XP 20 D model but the transmitter cell can be powered by a CR2 battery

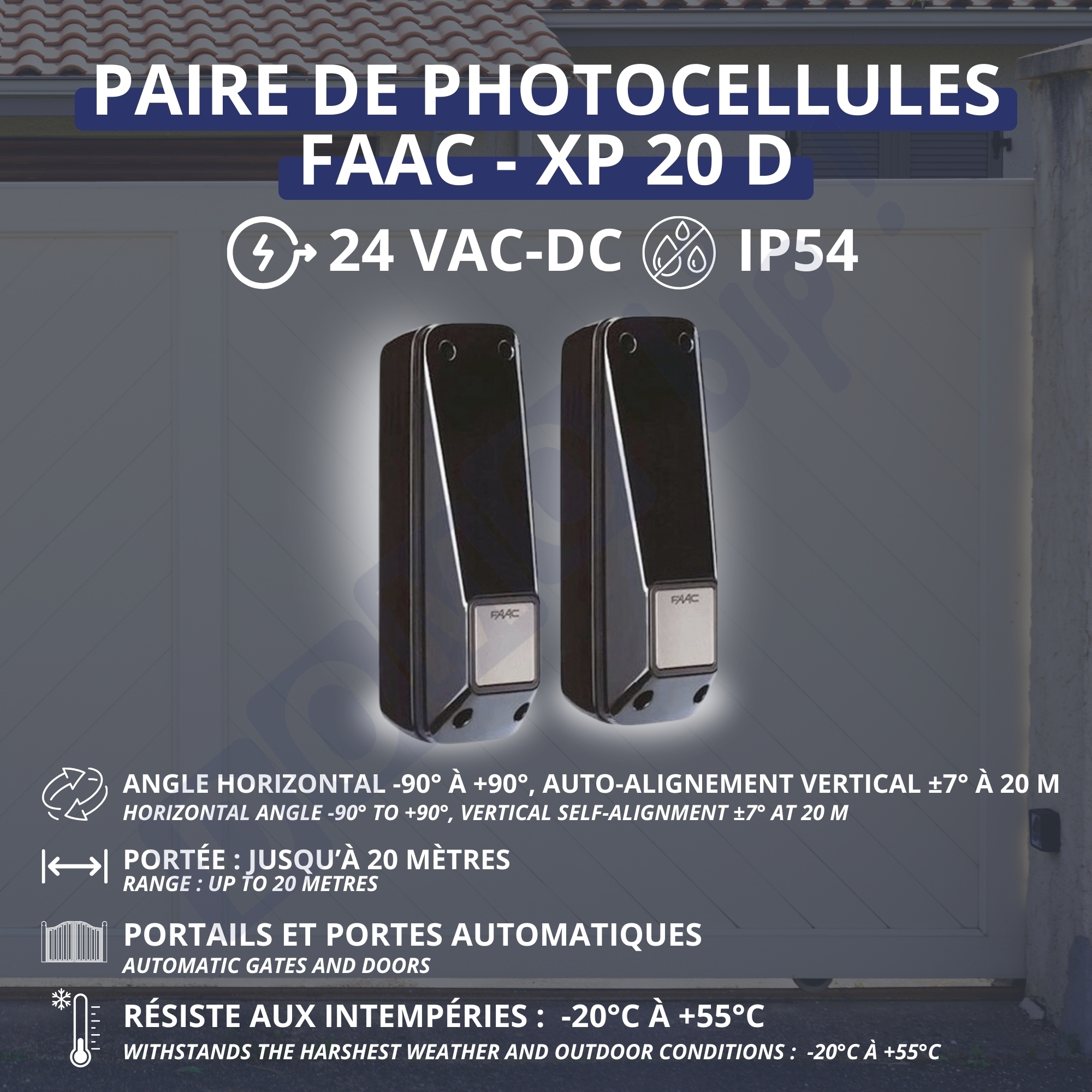

Discover FAAC XP 20 D Photocells

The FAAC XP 20 D photocells are a reliable and high-performing security solution for automated gates and barriers. Thanks to their modulated infrared beam and optical self-alignment system, they ensure precise obstacle detection, providing enhanced safety for your installations.

With a maximum range of 20 meters, a compact design, and flexible installation, these devices integrate seamlessly into residential and industrial environments while offering weather resistance with their IP54 protection rating.

Technical Specifications

  • Reference: 785102
  • Power Supply: 24V AC/DC
  • Range: Up to 20 meters
  • Protection Rating: IP54, resistant to dust and water splashes
  • Orientation: Horizontal angle -90° to +90°, vertical self-alignment ±7° at 20 m
  • Dimensions: 41 x 130 x 42 mm
  • Temperature Range: -20°C to +55°C
  • Manual: Supplied with complete documentation

Key Features

  • Enhanced Safety: Precise obstacle detection using a modulated infrared beam and optical self-alignment technology.
  • Flexible Installation: Compatible with wall or column mounts, with adjustable orientation angles.
  • Robust Design: IP54 rating ensures optimal resistance to weather and dust.
  • Compact Design: Suitable for easy integration into any environment.

Why Choose FAAC XP 20 D Photocells?

  • Reliability: Precise obstacle detection and optimal protection for your automated systems.
  • Wide Compatibility: Compatible with most FAAC 24V AC/DC control boards.
  • Durability: Resistant materials and a design optimized for demanding conditions.
  • Performance: 20-meter range and simplified alignment for optimal operation.

Order FAAC XP 20 D Photocells Now

Choose the FAAC XP 20 D photocells to protect your automated installations with a reliable, high-performing, and easy-to-install solution. Order them today to ensure the safety of your gates and barriers.
