Hörmann pushbutton FIT 4 BS

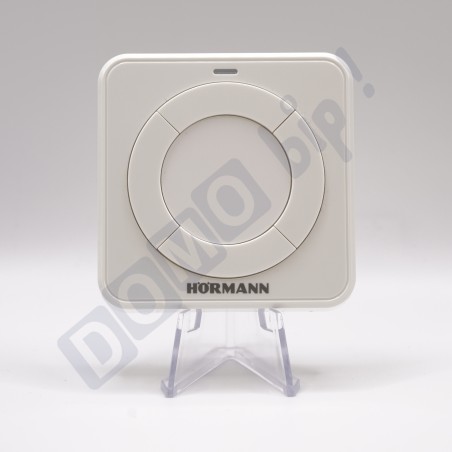

The Hörmann FIT 4 BS push-button is a radio remote control (wireless) that allows you to control the opening and closing of an automated system with BiSecur technology with a simple impulse. It has four buttons and a small LED at the top to indicate its status.

This wall control has been designed for indoor use only, in dry areas. It comes with two AAA (LR03) batteries, fixing accessories and full installation and operating instructions.

Guide to programming your push button :

Step 1. On Hormann motors, hold down the programming button for 5 seconds. On some motors, such as the SupraMatic 4 series, it is then necessary to press the up arrow before pressing the programming button again (the number 11 should appear). On the ProMatic 4, this step is not necessary.
Step 2. Move the button a few centimetres closer to the motor, then hold down the button to be programmed. The LED on the FIT 2-1 BS lights up steady blue, then flashes alternately red and blue after a few seconds. On the SupraMatic 4, the number "11" should flash rapidly.

Note: We strongly recommend that you pair your push button from the motor. The copy learning procedure does not always work.

Any comments about the guide? Don't hesitate to contact us using the contact form!
