FAAC 392 Articulated arm operators

FAAC 392 Motor: Enhanced Power and Modern Design for Swing Gates

The FAAC 392 motor is the new generation of automation for residential swing gates, and the direct successor to the well-known 391 model. It stands out for its reinforced power and updated design. Thanks to its advanced technology, it ensures smooth, secure automation perfectly suited to modern demands.

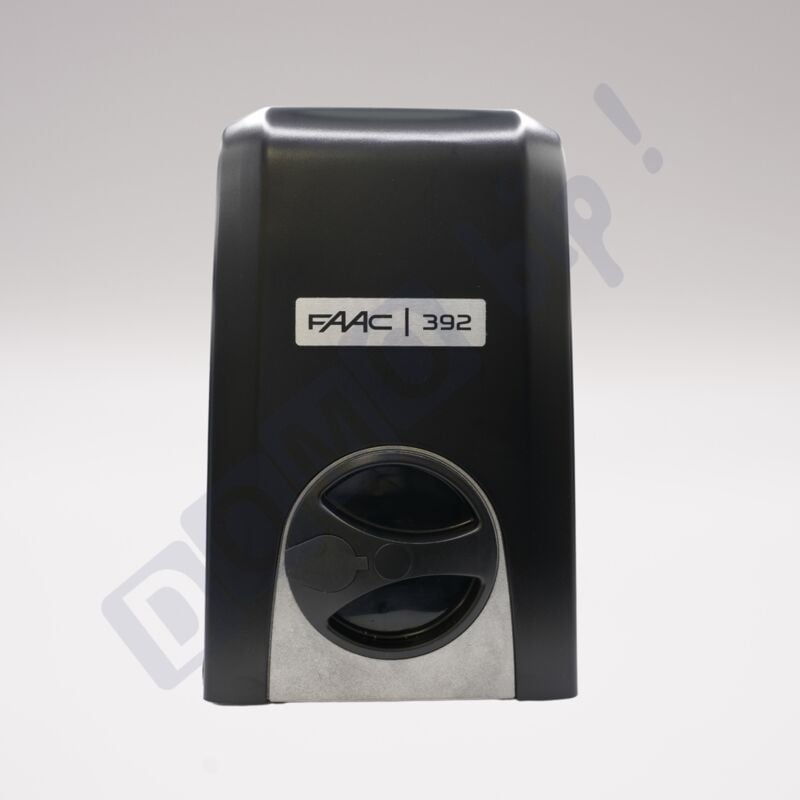

The arm used is identical to that of the FAAC 391 motor but now comes in an elegant anthracite grey shade. The operator covers have also been redesigned: they feature a more modern shape and a sleek black finish. This model can automate a leaf of up to 350 kg, providing superior performance compared to its predecessor.

It is possible to replace a FAAC 391 master operator with a FAAC 392 master to operate alongside a 391 slave, and vice versa by replacing a 391 slave with a 392 slave to work with a 391 master. However, it is not possible to purchase a 392 slave with the intent of inserting the electronics from a 391 master, as the control board is different and incompatible.

Applications

The FAAC 392 is designed to automate swing gates in residential environments. It can operate leaves up to 2 meters long (2.5 meters with an electric lock) and up to 350 kg in weight per leaf, making it ideal for installations requiring greater power.

Available Options with the FAAC 392 Motor

The FAAC 392 motor can be paired with a wide range of accessories to enhance its features and secure your installation:

• FAAC XT2 FDS 433-868 Remote Control: Operates on dual frequency (433.92 and 868.35 MHz) with AES-128 encryption for increased security. Compatible with FAAC FDS receivers.
• FAAC XF FDS 433-868 Receiver Module: Automatically detects frequency for optimal signal reception. Secure and high-performance FDS protocol.
• FAAC XP 20B D Photocells: Wired accessory using the 2easy BUS system, detects obstacles in 20 ms, IP54 housing for high resistance.
• FAAC XLED Flashing Light: Equipped with 40 high-intensity LEDs, multi-voltage power supply (24V, 115V, 230V), integrated antenna for 433/868 MHz frequencies.

By combining these accessories with your FAAC 392 motorization, you get a complete, reliable, and scalable solution tailored to your comfort and security needs.

Technical Specifications

• Reference: 104583 (Master) - 104584 (Slave)
• Maximum leaf length: 2 meters (2.5 meters with electric lock)
• Maximum leaf weight: 350 kg
• Power supply: 24 V DC
• Articulated arm: Supplied with each operator
• Power consumption: Not specified
• Protection rating: IP54
• Control board: E034 integrated in the Master operator only
• Operating temperature: -20°C to +65°C
• Dimensions: 304 x 256 x 183 mm
• Opening speed: 8.5° per second
• Integrated transformer: Ensures stable low-voltage conversion in the Master operator only
• Fixing accessories: Included
• Manual: Motor and control board manuals provided with the Master operator

New Integrated Control Board: E034

The FAAC 392 motor includes the new E034 board, replacing the now obsolete E024S board. This technological upgrade offers extended and intuitive management features:

• Programming via screen and buttons: User-friendly interface for quick setup.
• Single or dual operator configuration: Suitable for one-leaf or two-leaf installations.
• End-of-travel slowdown: Smooth motion and mechanical preservation.
• 2EASY BUS outputs: Fast connection for compatible accessories.
• Solar panel power supply option: Eco-friendly solution.
• FDS-compatible and backward compatible: Works with XF 868 modules and FAAC remotes using SLH or FDS protocols.

Integrated Features

• Obstacle detection: Automatically stops the motor when obstruction is detected.
• Pedestrian opening: Partial opening for pedestrian access.
• Automatic locking: Enhanced security when the gate is closed.
• Thermal protection: Prevents overheating during intensive use.
• Radio connectivity: Compatible with FAAC remote controls for easy wireless control.

Why Choose the FAAC 392?

• Reliability and Durability: Built with high-quality materials for long-lasting performance.
• Easy Installation: Integrated control board and intuitive settings.
• Maximum Safety: Obstacle detection and automatic locking for better protection.
• Innovative Technology: Smooth and quiet operation thanks to soft start/stop systems.

Order the FAAC 392 Now and Automate Your Swing Gate

Don't miss the opportunity to upgrade your swing gate with the new FAAC 392 motorization. Available in Master and Slave versions, it combines power, reliability, and innovation.

Add this motor to your cart and enjoy fast delivery and dedicated customer support!
